Place of Origin:
CHINA
Brand Name:
BlueHarbor
Certification:
ISO CE SGS
Model Number:
BL30161
Easy Assemble Light Steel Frame House / Two Storey Prefabricated House
Light Steel Frame Homes

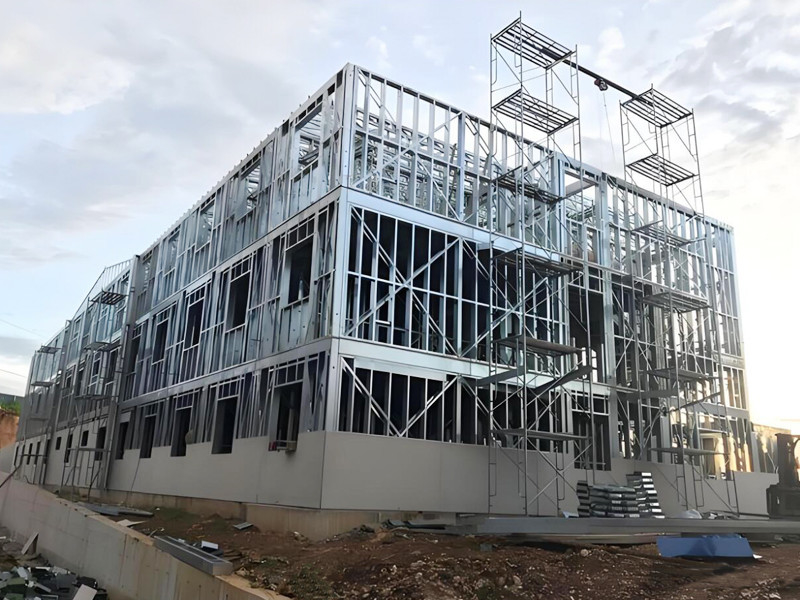

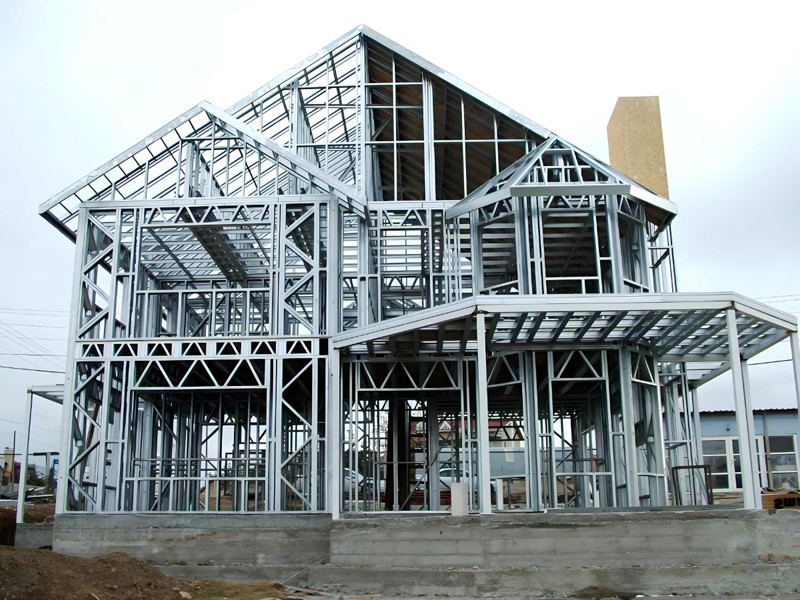

Our light steel houses utilize the 100% cold-bend thin wall steel as the structure body and can be used to build buildings within 6 floors. The main building component of this system is the frame bridge, which is composed by the galvanized cold-bending high frequency welded light thin wall rectangular pipe and the triangle C type, triangle V type connection.
All these prefabricated components are transferred to the construction site to be installed into the structure body. After that the interior, exterior wall panels and roof profile panels are laid out, while the heat and sound insulation material are filled into the space in the wall and floor deck.
Light Gauge Steel Structure Features
1, Lifetime for structure: 100 years.
2, Earthquake resistance: can withstand max more than 9 grades.
3, Wind resistance: max 60m/s.
4, Fire resistance: all the materials used can be fire resistance.
5, Snow resistance: max 2.9KN/m²as required
6, Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7, High acoustic insulation: 60db of exterior wall 40db of interior wall
8, Insect prevention: Free from the damages by insects, such as white ants
Light Steel House Descriptions
| No. | Part | Name | Specification |
| 1 | Steel Structure | Cold-formed thin steel/Q550 | 0.8-1.5mm thickness |
| 2 | Wall System | Decoration Panel | Metal or PVC decoration panel |
| XPS panel | 1220*600*40mm | ||
| Moistureproof paper | 50m2/coil | ||
| OSB board | 6mm/9mm/12mm/15mm, conform to EU EN300 standard. | ||
| Interior gypsum board | 1220*2440*9mm | ||
| 3 | Roof System | Roof Tile | Asphalt tile/Resin tile + SBS + OSB + Glass Wool |
| 4 | Insulation System | Wall, Roof, Floor and Ceiling | 90/100mm glass wool, XPS Panel |
| 5 | Doors & Windows | Entry door | Steel security door, can be customized |
| Interior door | Composite door, can be customized | ||
| Aluminum alloy door | Glass sliding door, can be customized | ||
| Window | Plastic steel or Aluminum Alloy Window, double- layer glass | ||
| 6 | Ceiling System | Gypsum Panel + insulation cotton | 90/100mm glass wool |
Support and Services
Our Light Steel House product comes with comprehensive technical support and services to ensure the smooth installation and operation of the structure. Our technical support team is available to assist with any questions or concerns about the product, including design specifications, installation instructions, and maintenance procedures.
In addition to technical support, we also offer a range of services to help our customers get the most out of their Light Steel House. These services include on-site installation support and regular maintenance and inspection services to ensure the longevity and safety of the structure.
